A MODULAR CUTTING MACHINE WITH 10k COMBINATIONS

A serial machine that meets your needs exactly, that's the modular cutting machine Metzner MBS

The Metzner MBS is a truly modular cutting machine. In total, you can choose from more than 10,000 different possible combinations. The list of standard modules is therefore very long. On top, your specific requirements can also be adapted.

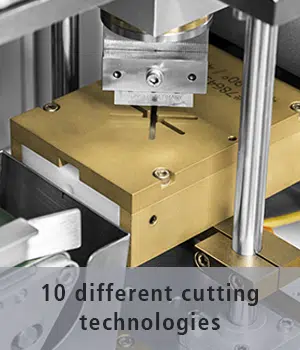

MOST COMMON CUTTING POSSIBILITIES

Blade Cut

Draw cut with thin blades for high cutting quality

Draw Cut

Drawing cut with knife, also with tensioned knife blade

Drilling

Drilling in and through

Eccentric Cut

Cuts at high working speed: up to 400 cuts per minute in start-stop mode

Hot Cut

For braided hoses and similar materials

Punch Cut

For precise miter cuts and 90° cuts

Shear Cut

Used for glass fiber reinforced materials

Tool Cut

Customized designs

The table shows several examples. There are many more solutions. Furthermore, Metzner can realize customized tools and cutting solutions.

EXCHANGEABLE TOOLS

For your Metzner MBS, you can choose from more than 10 different cut types. What is more: You can also combine up to 3 in just 1 machine. So you can integrate more and different processing possibilities in just one automatic production run. Here you can see just 4 examples:

1st example:

Stam cut with automatic angle settings

2nd example:

Tube cut with defined angle, defined knife profile, defined blade thickness and exact force

3rd example:

Contour cut tool, which offers concave and convex cuts as well as circular stamping in the middle of the material

4th example:

Eccentric cut tool. It makes 400 cuts per minute, while the material is stopped before every cut. With electric drive instead of the unusal pneumatical one.

TECHNICAL DATA

Perfomance data	Metzner MBS 100	Metzner MBS 200	Metzner MBS 400
Material dimension: width max.	90 mm	190 mm	390 mm
Material dimension: height max. (Values are partly achieved with options only)	30 mm – 80 mm	0.1 mm \| 0.004″	30 mm – 80 mm
Size increments (Values are partly achieved only with options)	60 m/min. – 150 m/min.	60 m/min. – 150 m/min.	60 m/min. – 120 m/min.
Cutting performance (with cutting length of 5 mm \| 0.2″)	170 cuts/min.	130 cuts/min.	60 cuts/min.
Length interval	0.1 mm \| 0.004″	0.1 mm \| 0.004″	0.1 mm \| 0.004″
Typically repeatable exactness (Values are partly achieved with options only)	+/- 1mm + 0.2% L	+/- (1 mm + 0.2 % L)	+/- (1 mm + 0.2 % L)

Perfomance data	Metzner MBS 100	Metzner MBS 200	Metzner MBS 400
Compressed air connection	6 bar	190 mm	6 bar
Dimensions (L x W x H)	Depending on the customized configuration	Depending on the customized configuration	Depending on the customized configuration
Weight	Depending on the customized configuration	Depending on the customized configuration	Depending on the customized configuration

DOWNLOADS

Data sheet Metzner MBS

Metzner Product Catalogue Rubber and Plastics

Thanks to the Metzner MBS range of modular cutting machines, you can create a cutting machine, that exactely meets your needs. First, you can choose from ten different types of cutting technologies. Of course, cutting or punching of contours is also possible. What’s more, you can combine up to three different cutting technologies in a sole machine. All these options are available in three sizes. According to the size of your material, there are belt feeds and conveyor belts available for material sizes up to 100 mm, 200 mm or 390 mm.

More than 10,000 combinations possible

And the best: all these tools are already completely developed and can be integrated into your machine as standard. So, the Metzner MBS range is a modular system that offers you 10,000 possible combinations. It’s an extremely economical and efficient solution, of course.
